Router vs. Mesh Wi-Fi: Comparing EMF Readings Around Your Home

October 9, 2026

"Should I switch from my router to a mesh system?" is one of the most common questions we get, and the honest answer is: it depends on your home, and the difference is measurable. A single router is one source. A mesh system is several, each with its own antenna, each transmitting whenever there's traffic — and, on many systems, talking to each other wirelessly on top of that.

So which is "quieter" in a real home? We set up both configurations in the same house, ran the same traffic, and measured. Here's what the numbers showed, and — more usefully — how to run the same comparison in yours.

The Setup We Compared

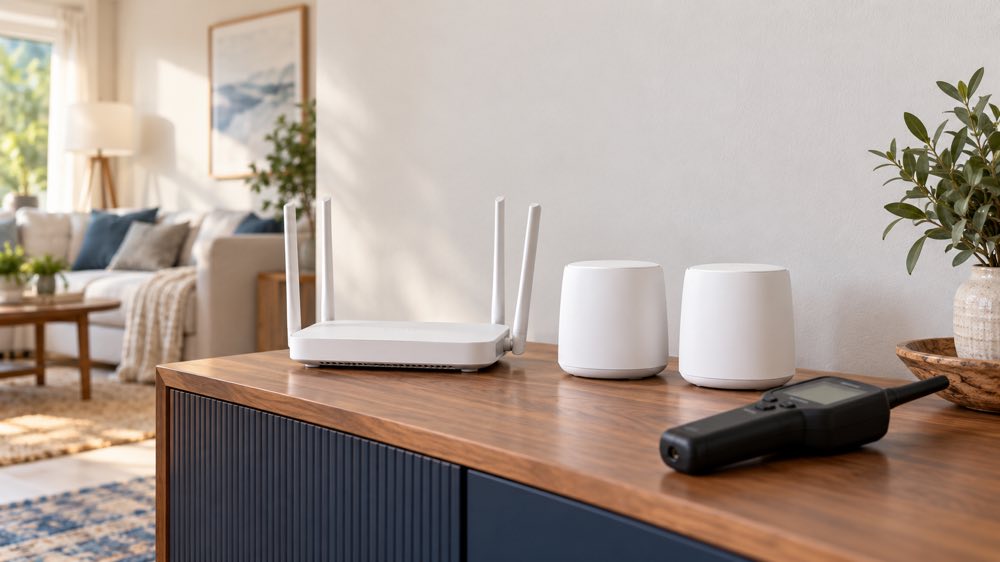

The test home: a two-story house, roughly 1,800 sq ft, with the usual modern traffic profile — a few phones, laptops, a streaming TV, and smart home devices. Two configurations, one at a time, everything else identical:

• Single router. One dual-band router, 2.4 and 5 GHz both enabled, placed in the living room (the ISP's default spot, on a media console).
• Mesh system. A three-node system: the main node in the same living room spot, one node in the upstairs hallway, one in the primary bedroom (where the homeowner had put it for coverage).

Both configurations ran the same traffic pattern: a baseline "idle" period (devices connected, no active streaming) and an "active" period (4K video on the TV, a video call, background updates). The meter was an RF survey instrument covering the Wi-Fi bands, and every measurement was taken at the same fixed points: 30 cm from each device, 1 m, 3 m, and at the bed and desk in each room. Peak-hold and average, both recorded.

How the Two Systems Differ, Physically

Before the numbers, the physics that explains them:

• Number of transmitters. One router is one radio site. Three mesh nodes are three. Each node's own radiation is the same order of magnitude as the router's — consumer gear runs in the 100–300 mW output range — but there are more of them, in more places.
• Backhaul. If the satellite nodes connect to the main node wirelessly (the common default), they spend a meaningful share of their time transmitting to each other, not just to your devices. A wired-backhaul mesh (Ethernet to each node) transmits less overall, because the nodes only talk to their local clients.
• Duty cycle. Wi-Fi radios transmit whenever any connected device has data. Idle homes still have heartbeats, notifications, and sync traffic; active homes have sustained throughput. The difference between idle and active near a device is large — often a factor of five or more.
• Distance falloff. RF power density falls with the square of distance. This single fact does more for your readings than any other variable in this post: 30 cm from a node is a different exposure than 3 m from the same node, by roughly two orders of magnitude.

What the Measurements Showed

The pattern, with representative values from the test home (your numbers will differ with equipment, walls, and traffic):

Location	Single router (idle)	Mesh, 3 nodes (idle)	Mesh, 3 nodes (active)
30 cm from the device/node	~40 mW/m²	~45 mW/m²	~90 mW/m²
1 m from the device/node	~8 mW/m²	~10 mW/m²	~25 mW/m²
Primary bedroom, at the bed	~1.5 mW/m²	~6 mW/m²	~15 mW/m²
Upstairs hallway, center	~1 mW/m²	~3 mW/m²	~8 mW/m²
Downstairs kitchen, far corner	~0.5 mW/m²	~0.6 mW/m²	~1 mW/m²

Four takeaways:

1. The bedroom told the whole story. With a mesh node on the nightstand, the bed read roughly four times higher than with the single router — and the active period pushed it higher still. The node was doing its job (great coverage, fast speeds) at the cost of being the loudest thing in the room where the homeowner sleeps eight hours a night.
2. Far from any device, the two systems were nearly identical. In the kitchen's far corner — several meters from everything — the single router and the mesh system read within 20% of each other. Distance swallows the difference. Whole-home "average" comparisons that ignore where people actually are miss the point.
3. Active traffic dominated over architecture. The jump from idle to active was larger than the difference between the two systems at most locations. A single router streaming 4K in the living room outshone the quietest mesh corner of the house.
4. Everything stayed far below regulatory limits. Even the 30 cm active reading was a small fraction of the FCC's 1.0 mW/cm² general-public limit at 2.4 GHz. The practical question was never "is this legal" — it was "is this where I want to sleep." And the answer, for the bedroom, was no.

Placement Is the Biggest Lever

Re-run the bedroom scenario with one change: the mesh node moves from the nightstand to the upstairs hallway, where it was already doing coverage work. The bed reading drops from ~6 mW/m² (idle) back toward the single-router level, because the node is now 3–4 m from the pillow instead of 30 cm. At that distance, the square-law does the work: the same node, same output, a fraction of the field.

The general rules that fall out of the measurements:

• Central is good; bedrooms are not. A central location (hallway, landing, open living area) gives the best coverage per meter of distance from occupied spots. The classic mistake is adding nodes where coverage is worst — which is usually where people are.
• Wired backhaul where you can. If you can run Ethernet to a node, do it. The node transmits less, the network is more stable, and the total RF in the house drops. It's the one upgrade that improves both your Wi-Fi and your readings.
• Height and line of sight help coverage, which lets you lower output. A node on a shelf transmits further than one buried in a cabinet, so the system can run at lower power for the same coverage. Some systems auto-adjust transmit power; a well-placed node often settles at a lower setting.
• Keep the ISP gateway out of the bedroom. If your modem-router lives in a bedroom, that's your first move: relocate it, or put a proper router in a central spot and use the gateway as a bridge.

Device Activity Changes the Picture

The second lever is time. The same hardware produces very different readings depending on what's happening on the network:

• Schedule the night. Most routers and mesh systems can schedule the radio off, or disable specific bands, on a timer. A 2.4 GHz schedule of 11pm–7am (or the whole radio, if your morning doesn't need Wi-Fi) removes the overnight component entirely. This is the single highest-value change in our bedroom EMF guide, and it costs nothing.
• Steer devices to 5 GHz. Higher frequencies attenuate faster through walls, so the far-field from a 5 GHz radio is lower than from a 2.4 GHz one at the same output. If your devices support it, keeping 2.4 GHz for legacy-only use (or off) trims the whole-house background.
• Know your traffic. Security cameras, smart displays, and always-on sync services keep radios busy around the clock. Auditing what's actually connected — and what can be unplugged or scheduled — often surprises people. The router's admin page shows per-device traffic; ten minutes there is a free inspection of your own network.

How to Run This Comparison in Your Own Home

You don't need our equipment to get 90% of the value. The protocol:

1. Fix your measurement points. Bed (head of bed), desk, main seating, and 1 m from each device/node. Tape or photograph them so you measure the same spots every time.
2. Measure the as-is configuration. One RF meter, same mode, peak-hold over 10–30 minutes per point, during a normal evening. Record idle and active.
3. Make one change at a time — move a node, add a schedule, wire a backhaul — and re-measure the same points. One variable at a time is what makes the comparison honest.
4. Decide with the bedroom numbers. Whatever you do, the number that should drive the decision is the one at the places you sleep and work for hours. If those are at or below your comfort target (a few mW/m² or less is a reasonable one), the rest of the house is almost certainly fine.

And if you'd rather have it done with calibrated instruments and a finished map — including the before-and-after record for each change — that's exactly what an inspection is for. See what an EMF home inspection costs, and how to read the numbers if you're measuring on your own.
