Smart Meter EMF Testing: What to Measure Inside and Outside Your Home

October 9, 2026

The smart meter is the EMF source people argue about most and measure least. It's on the outside of your house, it's not yours, and it transmits in short bursts that a casual measurement will usually miss. The result is a lot of confident opinions and very few numbers.

This post is the measurement protocol: what to measure outside at the meter, what to measure inside the rooms it actually affects, what typical values look like, and what your options are once you have the data.

What a Smart Meter Actually Emits

Three things, in decreasing order of what people worry about:

• RF radiation, intermittent. The meter's radio — typically a sub-GHz link (902–928 MHz in much of the U.S.), 2.4 GHz, or a cellular connection, depending on the utility — transmits short bursts to report usage data. Bursts last seconds and recur on the utility's schedule, which can range from every few minutes to every few hours. Between bursts, RF is minimal.
• Magnetic fields, continuous but small. The meter's electronics and, more importantly, the service entrance conductors it sits on produce low-frequency magnetic fields. These are continuous (whenever you're using power) and fall off quickly with distance.
• Dirty electricity, potentially. The meter's power electronics can inject high-frequency noise onto the service wiring. This is a wiring phenomenon — it shows up at outlets, not in the air, and it's measured with a dirty electricity meter. See our dirty electricity guide.

Two practical consequences follow. First, a smart meter test is not one number — it's an outside RF map, an inside RF map, a magnetic check, and optionally a dirty electricity check. Second, because the RF is intermittent, the test has to be long enough to catch the bursts. Ten seconds of measuring is not a test.

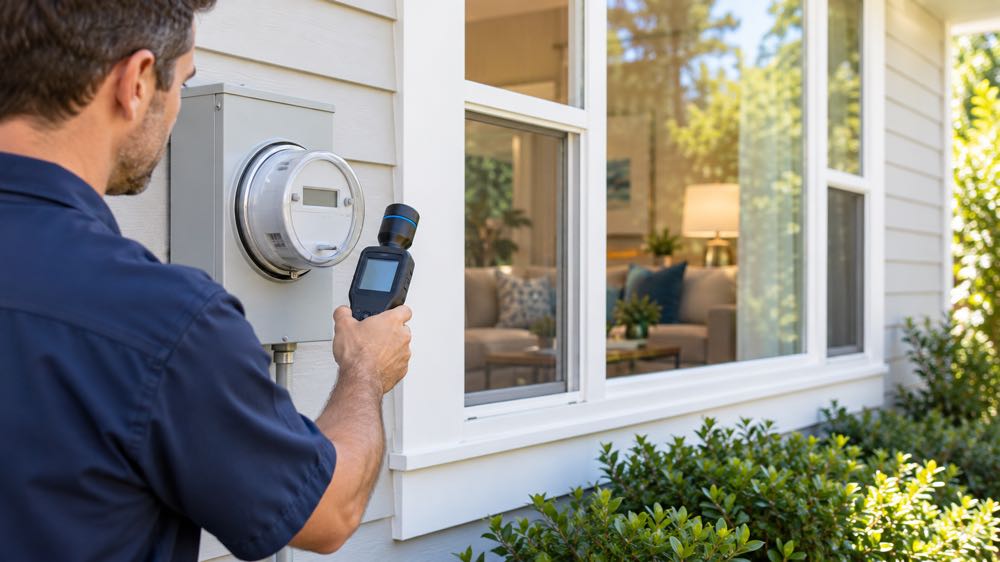

Outside the Home: Measuring at the Meter

Stand where you'd stand in normal life — on your own property, at a comfortable distance from the enclosure. You do not need to touch the meter, and you should not open it: it's sealed utility equipment carrying full service voltage, and all the measurements that matter are taken with it closed.

1. Set up the distances. Measure at three positions: about 30 cm (1 ft) from the enclosure face, about 1 m (3 ft), and about 3 m (10 ft). Keep the meter at the same height each time — chest height is a fine convention.
2. Use max-hold for a long window. Set your RF meter to peak/max-hold and leave it running for 30 to 60 minutes at each distance. This is what catches the transmission bursts. Note the time you start, so you can correlate later.
3. Record the pattern. If your meter logs or you're watching the display, note when bursts appear. Do they come every few minutes? Every 15? Is there a daily rhythm (many utilities concentrate reporting in overnight windows)?
4. Check the magnetic side. With a magnetometer, take the same three distances, peak-hold, a few minutes each. This is the continuous component.
5. Repeat on a second day if you can. Utility schedules shift, and one day's pattern is a sample, not a law.

Typical results: within a foot during a burst, single-digit to low-tens of mW/m²; at 3 m, usually a fraction of a mW/m². Magnetic fields near the enclosure are commonly 1–5 µT, dropping fast. If your numbers are dramatically different from that, you've found something worth a professional look — or a meter that's misbehaving, which is worth reporting to the utility.

Inside the Home: Measuring What Actually Arrives

The outside number is context. The number that matters for your health and sleep is what arrives inside, in the rooms behind the meter. Here's the inside protocol:

1. Identify the affected rooms. Trace the wall (and ceiling/floor, for in-garage or in-basement meters) behind the meter. Those rooms are your test set. Add one quiet room as a reference.
2. Grid the nearest room. Same approach as a full sweep: points across the room at head height and at bed height, about 30–60 cm apart, plus a line along the meter's wall. Use max-hold over 30–60 minutes so bursts are caught.
3. Toggle what you can. Turn off your own Wi-Fi and re-measure. If the reading barely changes, the remaining signal is the meter (and any external sources) — that's your clean baseline for the meter's indoor contribution.
4. Door open, door closed. Measure with the room door both ways. It rarely matters much for RF, but it's a free data point.
5. Compare to your reference room and to the practical targets we use: a few mW/m² or less at the bed is a comfortable goal; the FCC's general-public RF limit is 1.0 mW/cm² (10 W/m²) at these frequencies, which is orders of magnitude above typical home values.

One honest note: in most homes we test, the smart meter's indoor contribution ends up smaller than the household's own Wi-Fi. The meter is a legitimate source to measure, but it's frequently not the biggest one in the room. That's why the toggle step matters — it keeps you from "fixing" the meter while the router does the actual work.

Interpreting the Numbers

Three reference frames, same as any other RF source (see how to interpret a high reading):

• The regulatory ceiling. FCC general-public limits at sub-GHz and 2.4 GHz are 0.6–1.0 mW/cm²; ICNIRP's reference levels are in the same neighborhood. A compliant smart meter, even pressed against the enclosure, sits far below these. Being below the ceiling is necessary; it's not the whole story.
• The typical background. A quiet room a few meters from any device is usually well under 1 mW/m². If the room behind your meter reads 5–10× that, the meter (or something else in that wall) is a real contributor worth addressing.
• The duration. You sleep in that room eight hours a night, and the meter transmits on a schedule you can't see. That combination — low absolute level, long duration, zero control — is exactly the profile that justifies taking action even when the numbers look "fine" against a regulatory ceiling.

Your Options, Once You Have the Data

In order of effort:

• Do nothing, with eyes open. If the indoor contribution is small and the room isn't a sleeping room, the rational move is to record the numbers, re-check once a year, and move on. Measurement is also a legitimate reason to stop worrying.
• Ask the utility. Two specific requests: a non-AMI (traditional) meter, where offered — ask about cost, wait time, and whether it's a permanent option — and information on the meter model's transmission schedule, which helps you interpret your data.
• Relocate the furniture. If the bed or desk is against the meter's wall, moving it a meter or two can cut the indoor contribution dramatically, because RF falls with the square of distance. Free, reversible, effective.
• Shield the section. If the source is confirmed, the room matters, and distance isn't enough, a conductive paint or mesh section on that wall is a reasonable next step — measured before and after, per our shielding paint testing protocol.
• Report a misbehaving meter. If your outside readings are wildly above typical — or the meter is doing something odd, like constant transmission — the utility can usually test and swap it. That's a customer-service call, not a confrontation.

Whatever you choose, the sequence is the same: measure outside, measure inside, identify the source for sure, then act on the data. That's the difference between a smart meter you understand and one you argue about.
